Protective Safeguards Endorsements Guide

A protective safeguards endorsement can make working safety equipment a condition of commercial property coverage. The endorsement identifies the required system—such as a sprinkler, fire alarm, or cooking-suppression system—and explains what happens if that system is not maintained, activated, or reported as impaired.

The consequence can be severe. Under the standard ISO fire form, a failure to meet one of the endorsement’s conditions can exclude loss or damage caused by fire. The result still depends on the exact form, the scheduled safeguard and property, the facts of the impairment, and applicable law.

These endorsements are short, but they should be read in four parts: the schedule, the conditions, the exclusion, and the safeguard definitions. Reading only the title or form number can miss a blank schedule, a cross-reference, or carrier-specific wording that changes the analysis.

This guide focuses on ISO CP 04 11 09 17 and notes important differences in older and proprietary forms. Always verify the form and edition attached to the policy.

How CP 04 11 works

ISO CP 04 11 09 17 adds a Protective Safeguards condition to the Commercial Property Conditions. For each safeguard listed in the schedule, the policyholder must:

1. maintain the safeguards over which it has control in complete working order;
2. actively engage and keep any listed automatic fire alarm or other automatic system in the “on” position at all times; and
3. notify the insurer if it knows of a suspension or impairment in a listed safeguard.

The endorsement also adds an exclusion. It states that the insurer will not pay for loss or damage caused by or resulting from fire if, before the fire, the policyholder failed to comply with any of those conditions.

That structure matters. The maintenance requirements are conditions, and the stated consequence appears in an exclusion. Calling the entire endorsement only a “warranty” or only an “exclusion” skips part of how the form works. Courts may also characterize similar provisions differently under state law.

The 09 17 edition added the express requirement to engage automatic systems and keep them on. Earlier forms, including IL 04 15 04 98, use different wording and should be read separately.

Which safeguards can be scheduled

CP 04 11 uses symbols to identify the required protection:

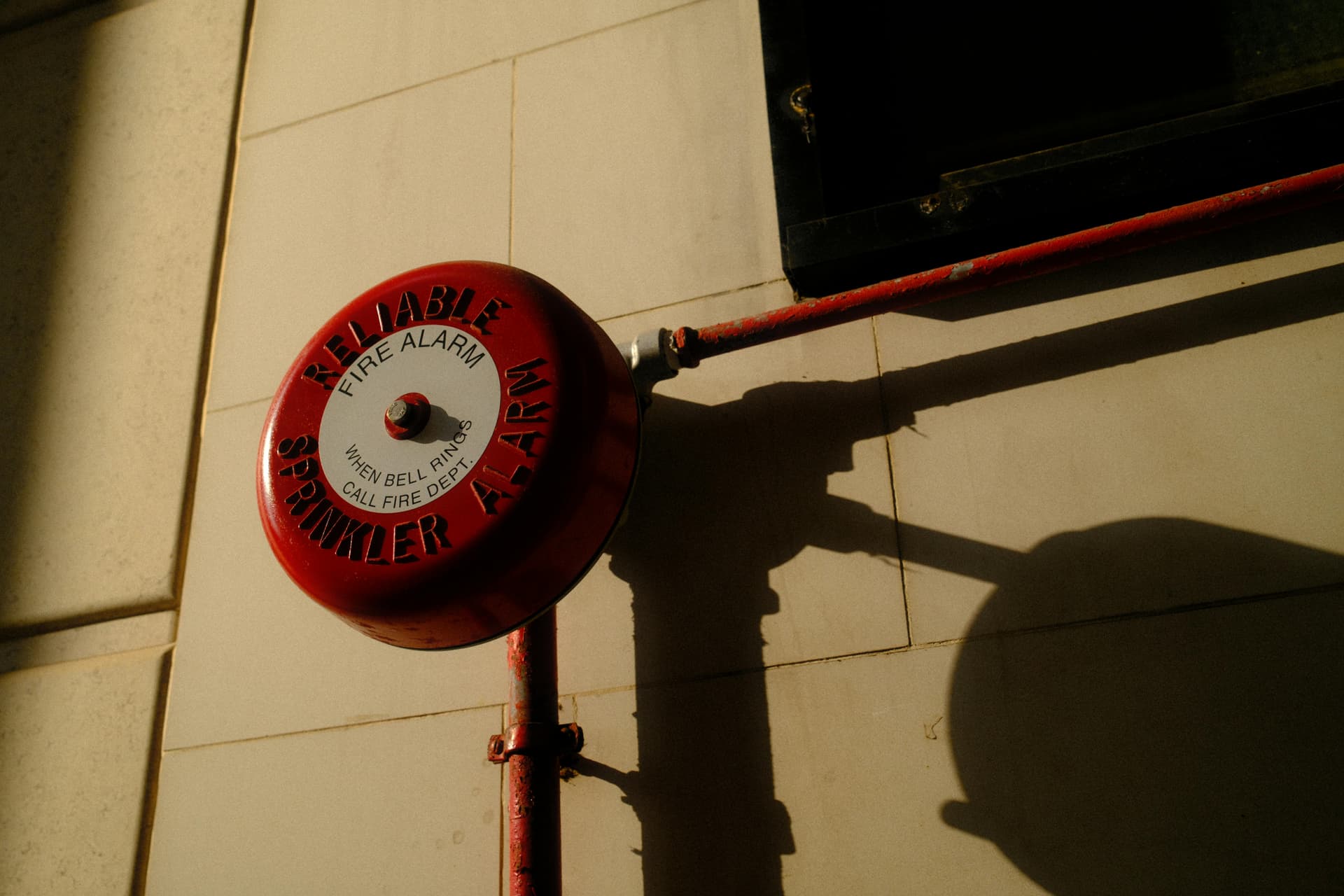

• P-1 — Automatic Sprinkler System: includes the connected fire-protection and extinguishing equipment described in the form, as well as related supervisory services.
• P-2 — Automatic Fire Alarm: protects the entire building and connects or reports to the station described in the form.
• P-3 — Security Service: includes the specified recording system or watch clock and hourly rounds when the premises are not operating.
• P-4 — Service Contract: a contract with a privately owned fire department providing fire-protection service to the premises.
• P-5 — Automatic Commercial Cooking Exhaust and Extinguishing System: includes the listed hood, duct, extinguishing, and related equipment.
• P-9 — Other safeguard: the system specifically described in the schedule.

The symbol alone is not enough. Confirm the premises number, building number, safeguard description, and any information supplied through the declarations. A P-9 description can impose a requirement that does not resemble the standard sprinkler or alarm provisions.

The 48-hour notification exception

CP 04 11 contains a narrow exception to the notice condition. Notice is not required when part of a P-1 sprinkler system or P-5 cooking exhaust and extinguishing system is shut off because of breakage, leakage, freezing conditions, or the opening of sprinkler heads, if full protection can be restored within 48 hours.

The exception does not create a general 48-hour grace period. It does not apply to every safeguard or every reason for shutting one down, and the form refers to part of the system—not a planned shutdown of the whole system. If the facts do not fit each part of the exception, the ordinary notice condition remains relevant.

The standard form says to notify “us,” but does not prescribe a particular method in this paragraph. Read that wording with the policy’s other notice provisions and any state law governing notice to an insurer, producer, or agent. Written, time-stamped communications and confirmation of receipt can help establish what was reported and when.

How the fire exclusion applies

The endorsement itself does not require the safeguard failure to start the fire or increase the damage. In many jurisdictions, that gives the insurer a direct path to denial once a covered fire and a breach are established.

State law can change that result. For fire insurance on personal property, Texas Insurance Code § 862.054 prevents a breach of warranty, condition, or policy provision from defeating recovery unless the breach contributed to the destruction. New York Insurance Law § 3106 generally prevents a breach of warranty from defeating recovery unless it materially increased the risk of a loss within the contract’s coverage. Where those statutes apply, the analysis cannot stop with the endorsement’s text.

Vineland 820 N. Main Road, LLC v. United States Liability Insurance Co. illustrates the general rule. The court enforced a proprietary circuit-breaker safeguard even though the insured argued that the breach did not cause the fire.

That does not mean every lapse automatically defeats every part of a claim. The reviewer still must determine:

• whether the endorsement and schedule form part of the policy;
• whether the affected premises, building, and safeguard are the ones listed;
• whether the claimed damage was caused by or resulted from the peril named in the exclusion;
• which condition allegedly was not met;
• whether the policyholder had the control or knowledge required by that condition;
• whether an exception applies; and
• whether controlling law limits, excuses, waives, or otherwise affects enforcement.

Worked example: a warehouse sprinkler valve

Assume a warehouse has $800,000 in building coverage and $400,000 in business personal property coverage. CP 04 11 schedules P-1 for the building. A maintenance crew shuts the main sprinkler valve to repair a leak, completes the repair three days later, but leaves the valve closed. A later fire destroys the building and contents.

The insurer may argue that the sprinkler was not maintained in complete working order and that a known impairment was not reported. The policyholder would need to examine control, knowledge, timing, the reason and extent of the shutdown, the schedule, the 48-hour language, and governing law. If the insurer establishes a failure to comply and no defense or exception applies, the endorsement can bar otherwise covered fire damage. The result should not be stated as a foregone conclusion without that analysis.

Maintenance, knowledge, and control

The three conditions do not use identical standards.

The maintenance condition applies to listed safeguards “over which you have control.” It does not expressly require the policyholder to know that the system is impaired. The notice condition, by contrast, applies when the policyholder knows of a suspension or impairment. The activation condition applies to a listed automatic fire alarm or other automatic system and requires it to be engaged and kept on.

Those differences matter in a landlord-tenant building, a managed property, or a system controlled by a service company. Ownership alone may not answer who had physical access or operational control, but a lease provision alone may not settle the issue either. Relevant evidence can include keys and access permissions, maintenance contracts, inspection reports, service records, alarm logs, valve-tamper records, and communications among the owner, tenant, property manager, and vendor.

Breton, LLC v. Graphic Arts Mutual Insurance Co. illustrates why the facts matter. The district court construed “maintain” and “control” in favor of the insured landlord, which lacked keys to the warehouse and sprinkler room. On appeal, the Fourth Circuit agreed that “maintain” was ambiguous in that policy but held that competing evidence about access created a factual dispute over control. It vacated the relevant summary-judgment ruling and remanded; it did not establish a blanket rule that a landlord without keys always lacks control.

Blank or unclear schedules

The schedule identifies the safeguard and the building or premises to which it applies. If the table is blank, first read the endorsement’s cross-reference. CP 04 11 permits required schedule information to appear in the declarations, and proprietary forms may point elsewhere.

In The Pointe Dallas, LLC v. Underwriters at Lloyd’s London, the Fifth Circuit held that a blank endorsement table did not by itself eliminate the requirement because the policy directed the reader to a Commercial Property Insurance Schedule. But the referenced phrase “P-2 Fire Alarm: Local” was reasonably susceptible to more than one meaning. The court reversed summary judgment on the contract claim and remanded.

In Razuki v. AmGUARD Insurance Co., the Ninth Circuit reached a different result on different wording. The schedule required P-1, while the building had an Ansul cooking-suppression system. The court held that reading the P-1 sprinkler definition to include the Ansul system would improperly erase the form’s separate P-9 designation, and it affirmed judgment for the insurer.

The lesson is to follow every cross-reference and compare the scheduled term with the form’s definitions. “Blank,” “local,” “sprinkler,” and a custom symbol cannot be analyzed in isolation.

Older, companion, and proprietary forms

The policy may not use CP 04 11 09 17.

• IL 04 15 04 98 is an older ISO protective-safeguards form found in commercial property and farm policies. It does not contain all the same language as CP 04 11 09 17.
• CP 12 11 09 17 addresses burglary and robbery safeguards. It uses BR symbols, contains its own activation and temporary-impairment rules, and adds an exclusion for loss or damage caused by or resulting from theft when its conditions are not met.
• Proprietary forms may list circuit breakers, utilities, fences, fire watches, spray booths, dust-collection equipment, or other devices and services. They may also attach consequences to different causes of loss.

Do not import CP 04 11’s fire limitation, symbols, control language, or 48-hour exception into another form. Read the proprietary condition, exclusion, schedule, definitions, and exceptions as a unit.

Statutory standard-fire-policy arguments are also jurisdiction- and policy-specific. For example, Liberty Insurance Underwriters Inc. v. Weitz Co. addressed whether Arizona’s standard fire policy requirements applied to a builder’s-risk policy classified as inland marine; the court held that the statutory requirements did not apply to that policy. That case does not create a general Arizona rule invalidating protective-safeguards endorsements.

What the cases show

These decisions show why the form, facts, jurisdiction, and procedural history all matter:

Case outcomes should not be converted into universal rules. Some decisions interpret older or proprietary wording, apply one state’s law, resolve only summary judgment, or are nonprecedential.

FAQ

Is a protective safeguards endorsement a condition or an exclusion?

CP 04 11 contains both. It adds conditions requiring maintenance, activation, and notice, and it adds an exclusion stating the consequence for fire loss when those conditions are not met. Other forms may be structured differently.

Does the safeguard problem have to cause the fire?

CP 04 11 does not state a separate causal connection between the safeguard problem and the fire. Courts have enforced similar wording without adding one. State law may require a different result: Texas § 862.054 requires contribution to the destruction for covered personal property, and New York § 3106 requires a material increase in the covered risk when a policy term qualifies as a warranty. The actual form, property, and governing law control.

Does the policyholder have to know the safeguard was impaired?

Knowledge is express in the notice condition. The maintenance condition does not contain the same knowledge requirement, although it applies only to safeguards over which the policyholder has control. Do not collapse the two conditions.

Is there always 48 hours to report an impairment?

No. CP 04 11’s exception is limited to part of a P-1 or P-5 system shut off for one of the listed reasons when full protection can be restored within 48 hours. CP 12 11 and proprietary forms have different language.

Does a blank schedule make the endorsement ineffective?

Not necessarily. The endorsement may direct the reader to the declarations or another schedule. Follow the cross-reference and then test whether the resulting description is complete and clear.

Can waiver or estoppel affect enforcement?

Possibly. Colony v. Peterson allowed those issues under North Carolina law based on the insurer’s pre-loss knowledge and conduct. Other jurisdictions may apply different rules, especially where waiver or estoppel would expand coverage rather than prevent a forfeiture. Coverage counsel should evaluate the controlling law and facts.

For Policyholder Representatives

Protective-safeguards issues should be identified before the claim theory is finalized. Obtain the complete policy and the records for each listed system. Separate facts known before the loss from facts discovered afterward, and separate the maintenance, activation, and notice conditions rather than treating them as one alleged breach.

Avoid describing a claim as automatically covered or automatically barred based on a single closed valve, missing alarm, or blank table. The most useful early work is to build a dated record of the system, the people who controlled it, the reason for any impairment, the notice given, the system’s restoration, and the exact policy language.

Claim Intake Checklist for Policyholder Representatives

Protective safeguards and Frontera

Frontera’s Coverage Analysis can help locate a protective-safeguards form, its schedule and cross-references, and the relevant conditions, exclusions, and definitions. Linking those findings to source policy pages gives the reviewer a faster way to assemble the controlling language.

Frontera’s Estimating tools can organize site evidence, inspection notes, photographs, and repair documentation relevant to the system and resulting damage. They do not decide whether a safeguard was legally in “complete working order” or whether an exclusion is enforceable. Those conclusions still depend on the policy, evidence, and governing law.

References

• ISO CP 04 11 09 17, Protective Safeguards
• ISO CP 12 11 09 17, Burglary and Robbery Protective Safeguards
• ISO IL 04 15 04 98, Protective Safeguards
• ISO Circular LI-CF-2016-100
• Texas Insurance Code § 862.054
• New York Insurance Law § 3106
• Burmac Metal Finishing Co. v. West Bend Mutual Insurance Co., 356 Ill. App. 3d 471, 825 N.E.2d 1246 (Ill. App. Ct. 2005)
• Charles Stores, Inc. v. Aetna Insurance Co., 490 F.2d 64 (5th Cir. 1974)
• Breton, LLC v. Graphic Arts Mutual Insurance Co., 446 F. App’x 598 (4th Cir. 2011)
• Five Star Hotels, LLC v. Insurance Co. of Greater New York, No. 09 Civ. 8717, 2011 WL 1216022 (S.D.N.Y. Mar. 24, 2011)
• Berenato v. Seneca Specialty Insurance Co., 240 F. Supp. 3d 351 (E.D. Pa. 2017)
• Vineland 820 N. Main Road, LLC v. United States Liability Insurance Co., No. 1:17-cv-02986, 2018 WL 4693965 (D.N.J. Sept. 29, 2018)
• Colony Insurance Co. v. Peterson, 582 F. App’x 156 (4th Cir. 2014)
• Liberty Insurance Underwriters Inc. v. Weitz Co., 158 P.3d 209 (Ariz. Ct. App. 2007)
• The Pointe Dallas, LLC v. Underwriters at Lloyd’s London, No. 22-11213 (5th Cir. Jan. 11, 2024)
• Razuki v. AmGUARD Insurance Co., No. 24-2352 (9th Cir. June 6, 2025)
• 3371 Reading, LLC v. Liberty Mutual Group, Inc., No. 25-3439 (6th Cir. amended opinion June 29, 2026)

This article is for educational purposes and does not constitute legal advice. Consult coverage counsel on specific claims and disputed policy interpretations.
